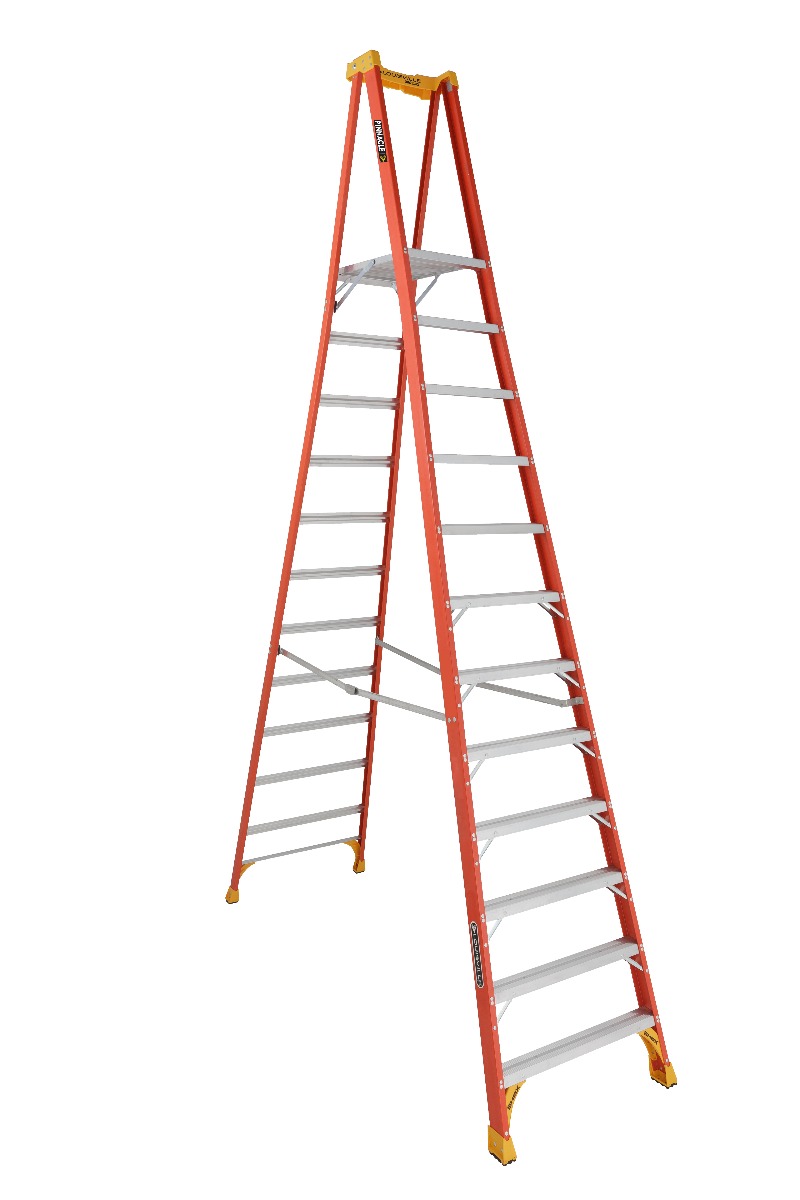

LOUISVILLE LADDER 12-FOOT FIBERGLASS PINNACLE PRO PLATFORM PLATFORM STEP LADDER, TYPE IA, 300-POUND LOAD CAPACITY,

SERIES FXP1700XL
Duty Rating: Type IA
Load: 300

This Louisville 12 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 36″ extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1712XL Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

FEATURES

  • ProTop With Multiple Tool Slots And Magnet
  • 30% Larger Platform Area For Added Comfort And Safety
  • Extended Handrail From Top To Platform
  • Shox Impact Absorption System
  • DaBoot Slip-resistant Boot
  • Double-Rivet Step Construction
  • Wide Back Braces

Where to Buy

Where to Buy

SIZE

LOAD CAPACITY

Material

STYLE

DUTY RATING

12

300

Fiberglass

Pinnacle Pro Platform

Type IA

PRODUCT SPECIFICATIONS

Product

Step Ladders

Duty Rating

Type IA

Number of Steps

12

Material

Fiberglass

Maximum Reach (in)

193

Open Height (in)

172 3/8

Closed Volume (cu. ft.)

40.0557

Closed Width (in)

36

OSHA

Certified

SKU

FXP1712XL

Load Capacity (lbs)

300

Rung Type

Standard Step

Weight

75

Open Volume (cu. ft.)

30.04

Open Depth (in)

101 1/2

Closed Height

184

Top Width Closed (in)

18.375

Style

Pinnacle Pro Platform

Size

12

Step Depth

3

Maximum Standing Height (in)

11' 15"

Open Volume (cu. m.)

10.54

Open Width (in)

36 3/4

Closed Depth

10

Certified

ANSI
