SERIES AE4200
Duty Rating: Type II
Load: 225

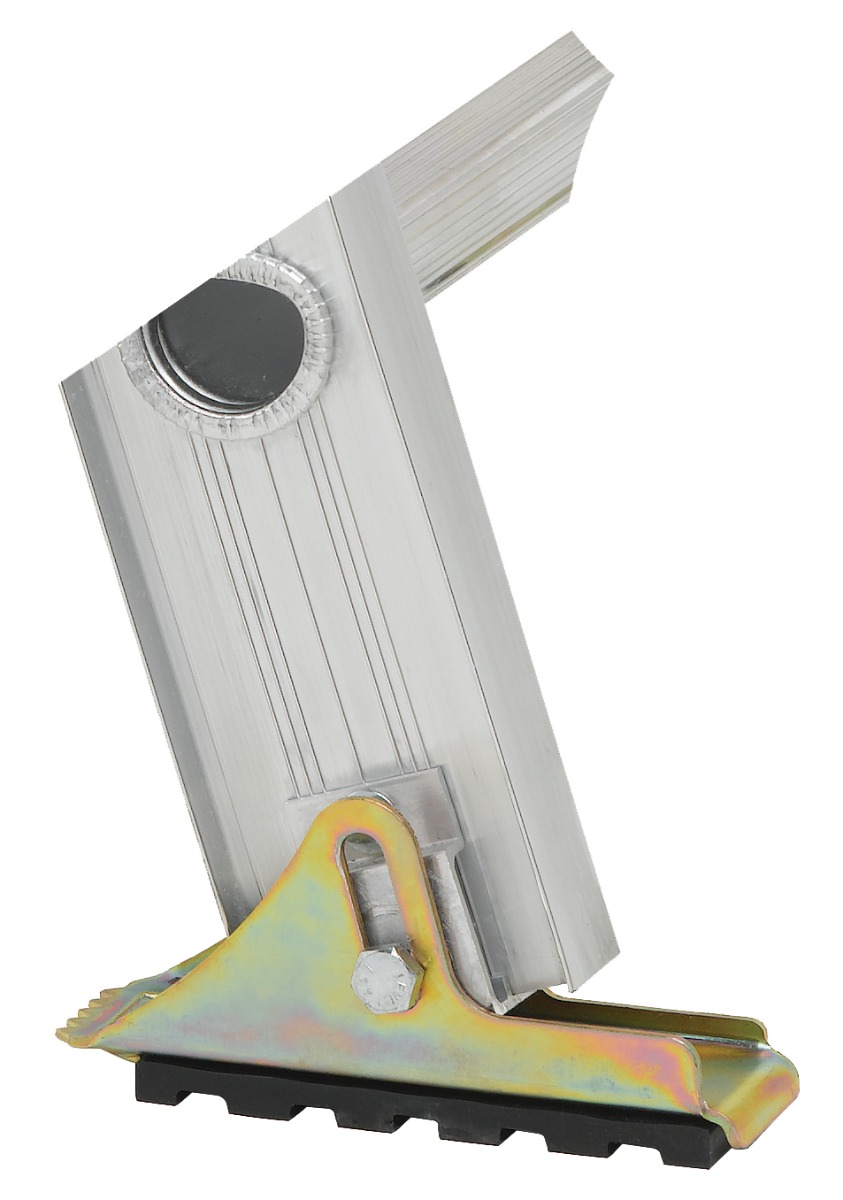

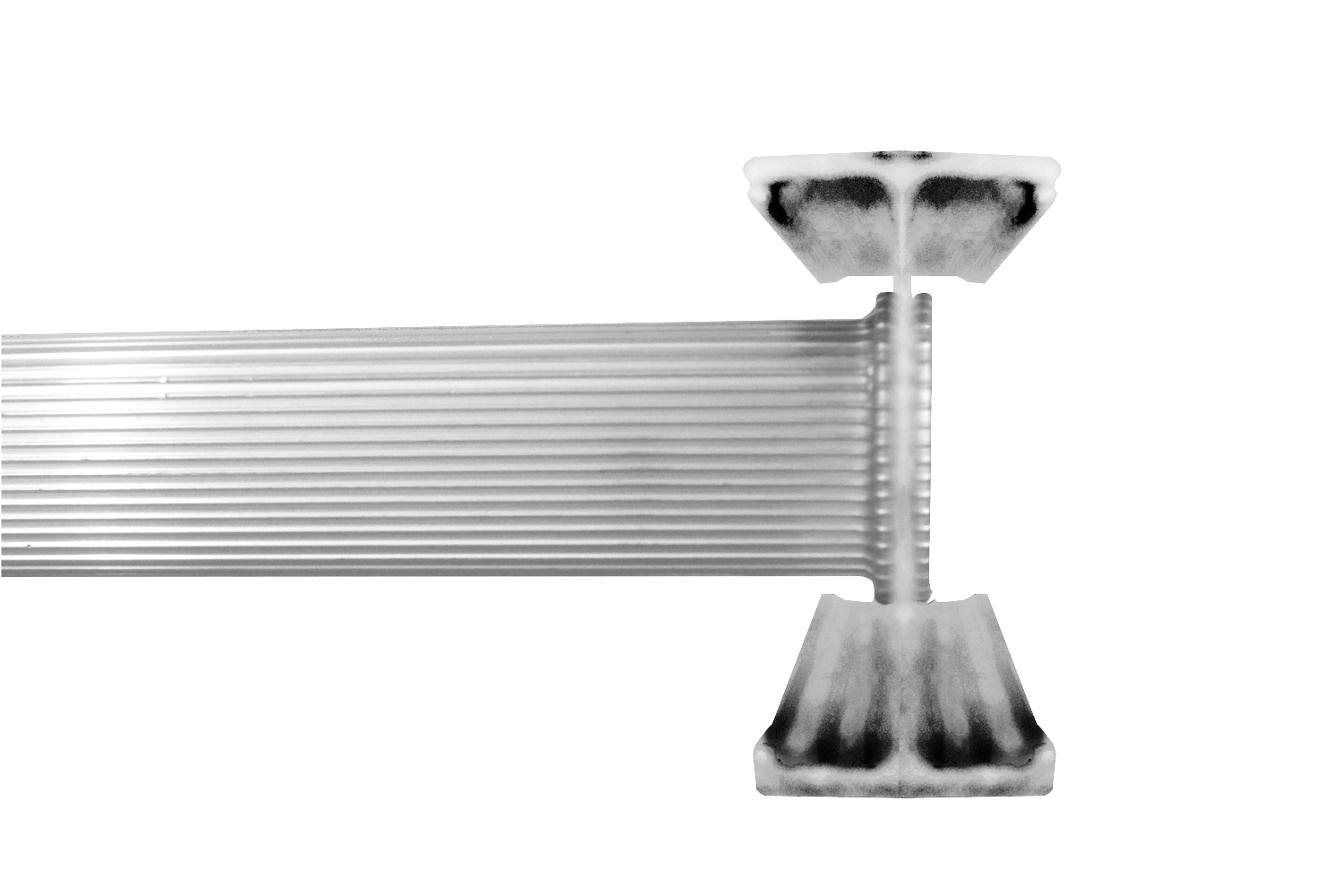

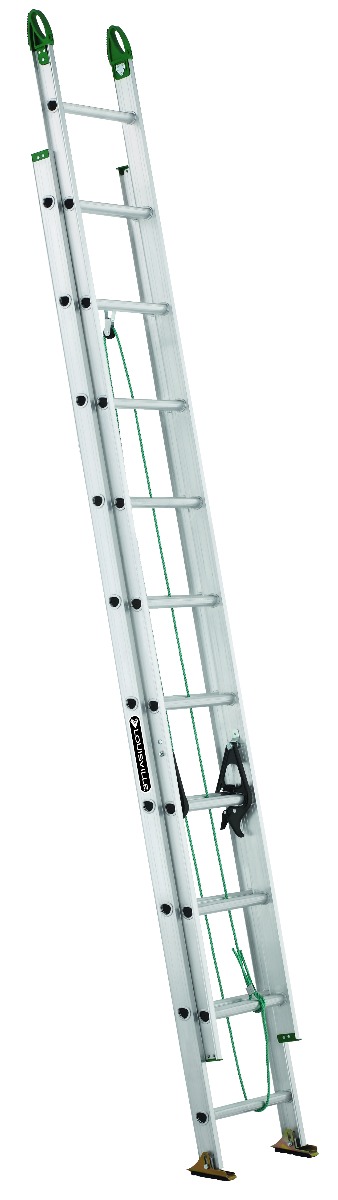

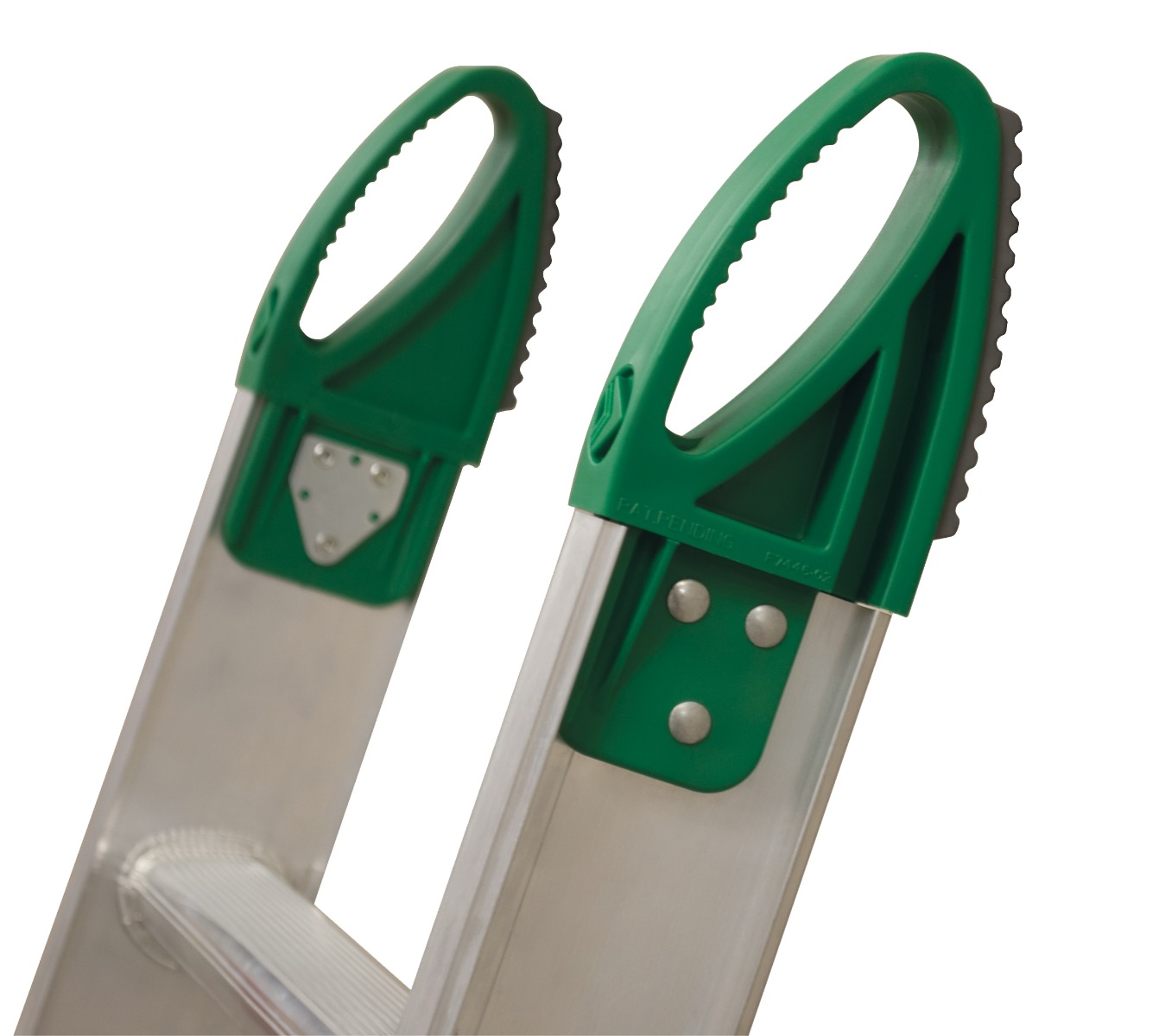

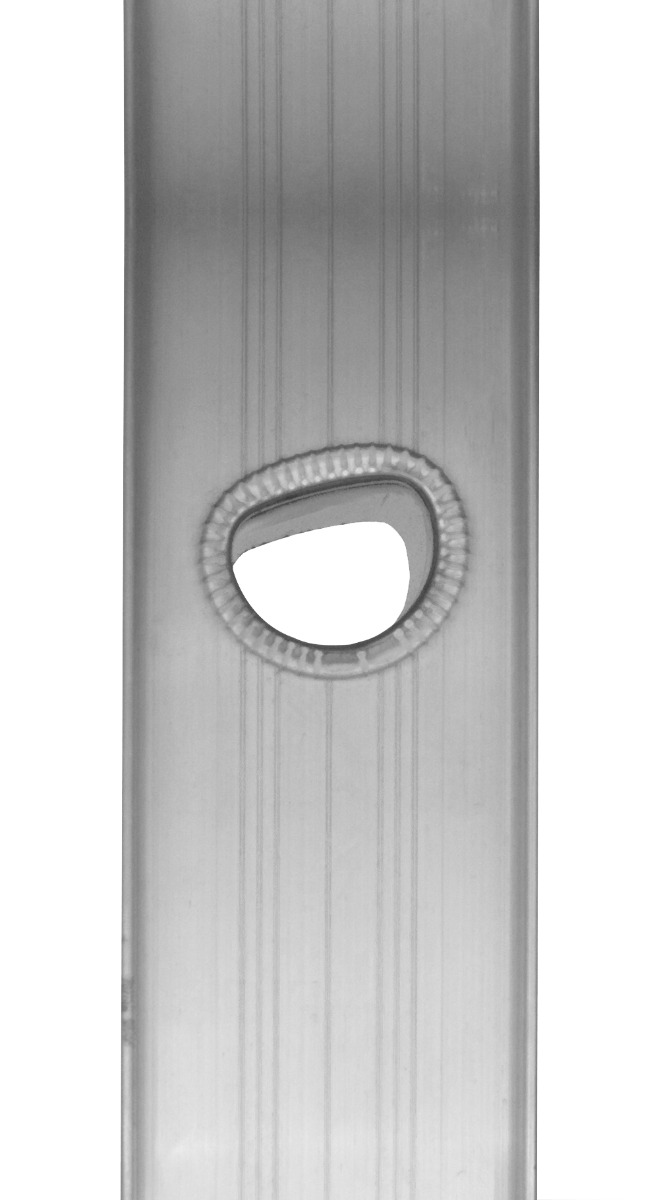

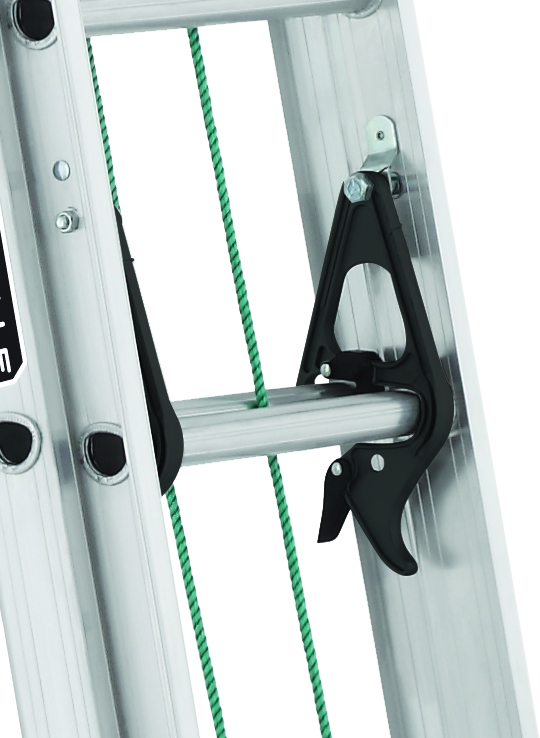

This Louisville 20-foot aluminum extension ladder has a 225 lb load capacity, rated ANSI Type II duty rating. It is equipped with the MAXLOCK rung lock, custom engineered from a patented, advanced molecular polymer, MAXLOCK is the strongest, toughest, lightest rung lock ever made. This ladder also includes the patented ProGrip slip resistant tread integrated onto the ladder caps to protect the work surface from damage. QuickLatch RungLock system that provides a simple, intuitive method of securing the fly and base sections of the ladder when extended. This ladder also features outside slide guides, D-shape rungs fully serrated for a slip resistant surface, rope and pulley, modified I-beam for a more stable connection and to prevent twisting, and swivel safety shoes to be used as tread down or in spike position. The Louisville AE4220PG aluminum extension ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
Where to Buy
SIZE
LOAD CAPACITY
MATERIAL
STYLE
DUTY RATING
20
225
Aluminum
Standard
Type II
PRODUCT SPECIFICATIONS
| Product | Extension Ladders |
|---|---|
| Duty Rating | Type II |
| Number of Steps | 14 |
| Material | Aluminum |
| Open Height (in) | 17 |
| Closed Volume (cu. ft.) | 8 |
| Closed Width (in) | 17.125 |
| Max. Extended Length (ft) | 17 |
| Inside Width Fly (in) | 14.32 |
| ANSI | Certified |
| SKU | AE4220PG |
| Load Capacity (lbs) | 225 |
| Rung Type | D-rung |
| Weight | 32 |
| Open Depth (in) | 5.25 |
| Closed Height | 10.5 |
| Section Length (ft) | 10 |
| Rail Depth (in) | 3 |
| Outside Width Base (in) | 17.13 |
| Certified | OSHA |
| Style | Standard |
| Size | 20 |
| Step Depth | 1.5 |
| Maximum Standing Height (in) | 17’ |
| Open Width (in) | 17.13 |
| Closed Depth | 6 |
| Total Length (ft) | 20 |
| Inside Width Base (in) | 15.25 |
| Outside Width Fly (in) | 16.19 |
