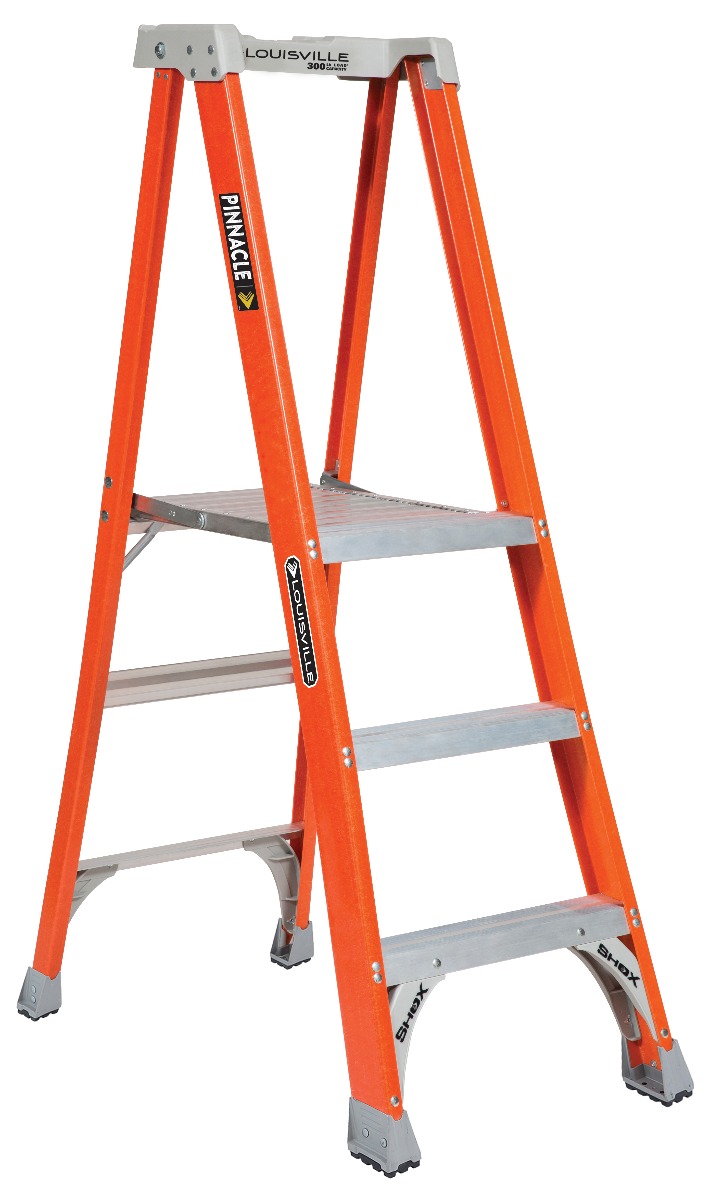

LOUISVILLE LADDER 3-FOOT FIBERGLASS PINNACLE PRO PLATFORM PLATFORM LADDER, TYPE IA, 300-POUND LOAD CAPACITY, FXP1703
SERIES FXP1700
Duty Rating: Type IA
Load: 300
This Louisville 3 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 30″ extended handrail (perfect tool belt height) and a 30% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1703 Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
- 30″ Tall Extended Handrail From Top To Platform
- 30% Larger Platform Area For Added Comfort And Safety
- ProTop With Multiple Tool Slots And Magnet
- Raptor Slip-resistant Boot
- Shox Impact Absorption System
- Double-Rivet Step Construction
- Wide Back Braces
Where to Buy
SIZE
LOAD CAPACITY
Material
STYLE
DUTY RATING
3
300
Fiberglass
Pinnacle Pro Platform
Type IA
PRODUCT SPECIFICATIONS
| Product | Step Ladders |
|---|---|
| Duty Rating | Type IA |
| Number of Steps | 3 |
| Material | Fiberglass |
| Open Volume (cu. ft.) | 8.38 |
| Open Depth (in) | 38 |
| Closed Height | 68 |
| Top Width Closed (in) | 18.4375 |
| Platform Rear Width (in) | 14.5 |
| Certified | OSHA |
| SKU | FXP1703 |
| Load Capacity (lbs) | 300 |
| Rung Type | Standard Step |
| Weight | 21 |
| Open Volume (cu. m.) | 0.93 |
| Open Width (in) | 23.13 |
| Closed Depth | 10 |
| Platform Depth (in) | 17.625 |
| Platform Height (in) | 1.218 |
| Style | Pinnacle Pro Platform |
| Size | 3 |
| Step Depth | 3 |
| Maximum Standing Height (in) | 2' 10" |
| Open Height (in) | 64.63 |
| Closed Volume (cu. ft.) | 9.329635417 |
| Closed Width (in) | 23.1 |
| Platform Front Width (in) | 14.5 |
| ANSI | Certified |
