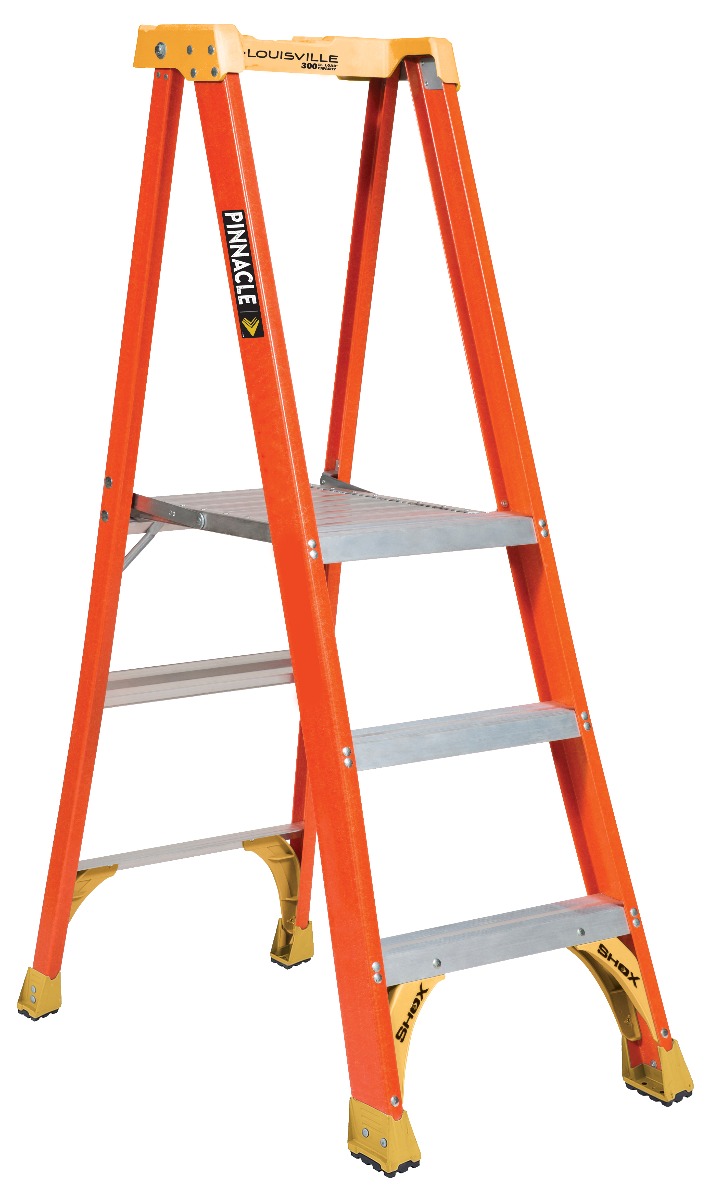

Louisville Ladder 3-Foot Fiberglass Pinnacle Pro Platform Platform Step Stool, Type IA, 300-pound Load Capacity, FXP1703XL

SERIES FXP1700XL
Duty Rating: Type IA
Load: 300

This Louisville 3 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 36″ extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1703XL Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

FEATURES

  • ProTop With Multiple Tool Slots And Magnet
  • 30% Larger Platform Area For Added Comfort And Safety
  • Extended Handrail From Top To Platform
  • Shox Impact Absorption System
  • DaBoot Slip-resistant Boot
  • Double-Rivet Step Construction
  • Wide Back Braces

Where to Buy

Where to Buy

SIZE

LOAD CAPACITY

Material

STYLE

DUTY RATING

3

300

Fiberglass

Pinnacle Pro Platform

Type IA

PRODUCT SPECIFICATIONS

Product

Step Ladders

Duty Rating

Type IA

Number of Steps

3

Material

Fiberglass

Open Volume (cu. ft.)

9.29

Open Depth (in)

42

Closed Height

76

Top Width Closed (in)

18 1/2

SKU

FXP1703XL

Load Capacity (lbs)

300

Rung Type

Standard Step

Weight

22

Open Volume (cu. m.)

1.10

Open Width (in)

23 1/8

Closed Depth

10

Certified

ANSI

Style

Pinnacle Pro Platform

Size

3

Step Depth

3

Maximum Standing Height (in)

2’ 10”

Open Height (in)

69 1/8

Closed Volume (cu. ft.)

10.3221

Closed Width (in)

24

OSHA

Certified
