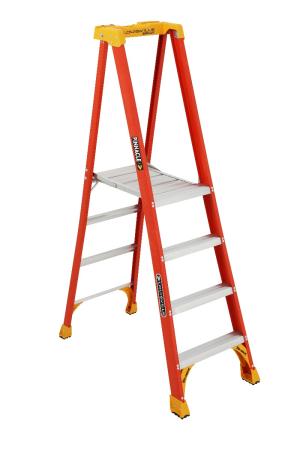

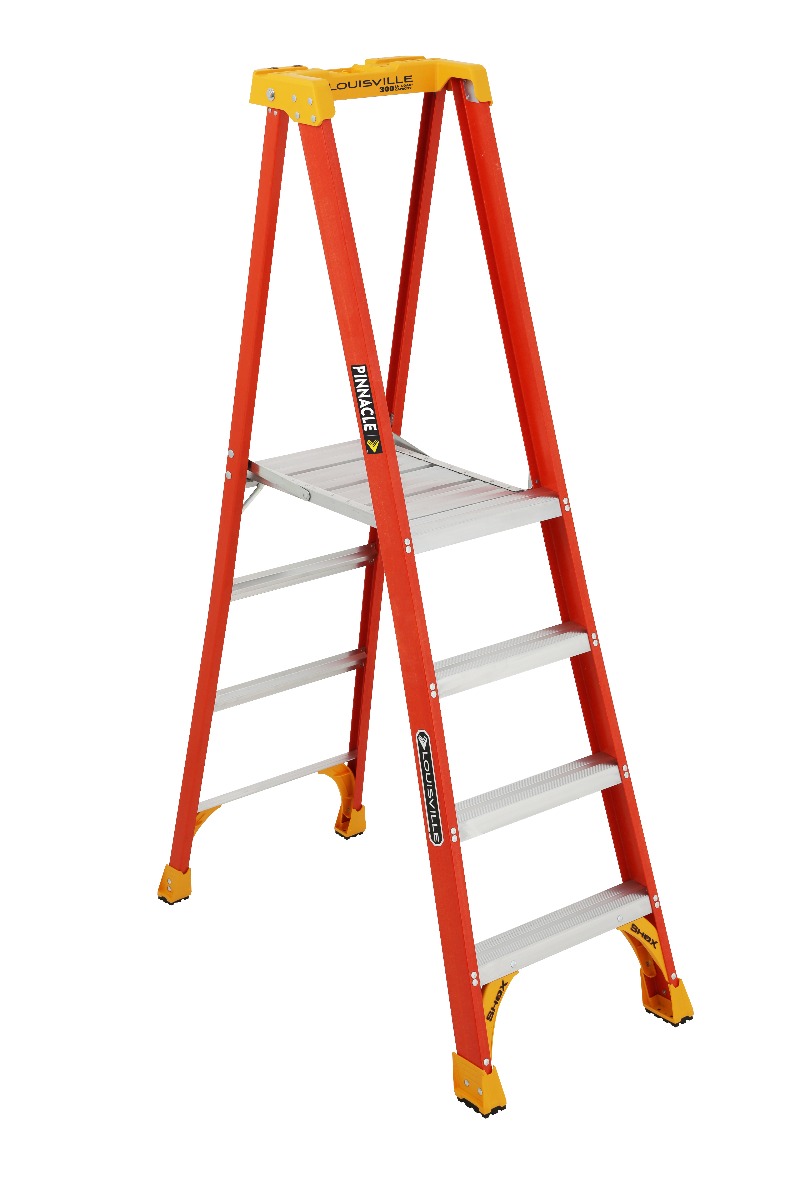

Louisville Ladder 4-Foot Fiberglass Pinnacle Pro Platform Platform Step Ladder, Type IA, 300-pound Load Capacity, FXP1704XL
SERIES FXP1700XL
Duty Rating: Type IA
Load: 300
This Louisville 4 foot Pinnacle Platform step ladder has a 300lb load capacity, rated ANSI Type IA. It features a 36″ extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1704XL Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.
FEATURES
- ProTop With Multiple Tool Slots And Magnet
- 30% Larger Platform Area For Added Comfort And Safety
- Extended Handrail From Top To Platform
- Shox Impact Absorption System
- DaBoot Slip-resistant Boot
- Double-Rivet Step Construction
- Wide Back Braces
Where to Buy
LOAD CAPACITY
SIZE
Material
STYLE
DUTY RATING
300
4
Fiberglass
Pinnacle Pro Platform
Type IA
PRODUCT SPECIFICATIONS
| Product | Step Ladders |
|---|---|
| Duty Rating | Type IA |
| Number of Steps | 4 |
| Material | Fiberglass |
| Maximum Reach (in) | 102 |
| Open Height (in) | 80 1/2 |
| Closed Volume (cu. ft.) | 12.8092 |
| Closed Width (in) | 25 |
| OSHA | Certified |
| SKU | FXP1704XL |
| Load Capacity (lbs) | 300 |
| Rung Type | Standard Step |
| Weight | 25 |
| Open Volume (cu. ft.) | 11.19 |
| Open Depth (in) | 48 |
| Closed Height | 88 |
| Top Width Closed (in) | 18 1/2 |
| Style | Pinnacle Pro Platform |
| Size | 4 |
| Step Depth | 3 |
| Maximum Standing Height (in) | 3' 9" |
| Open Volume (cu. m.) | 1.57 |
| Open Width (in) | 24 3/4 |
| Closed Depth | 10 |
| Certified | ANSI |
